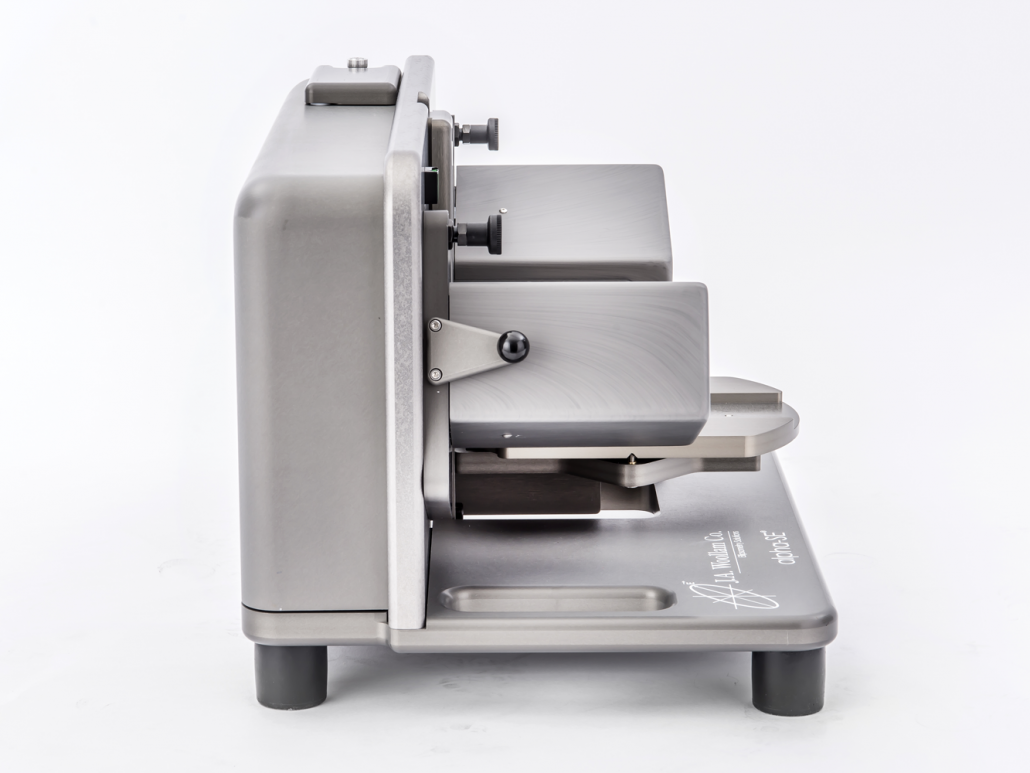

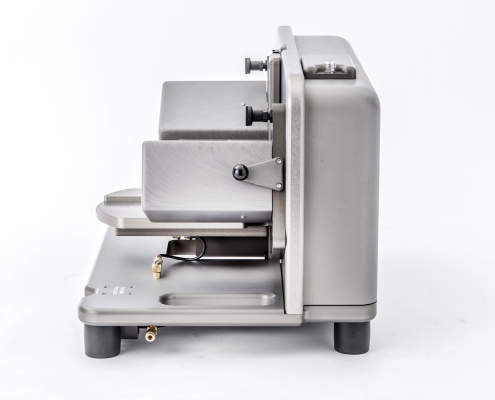

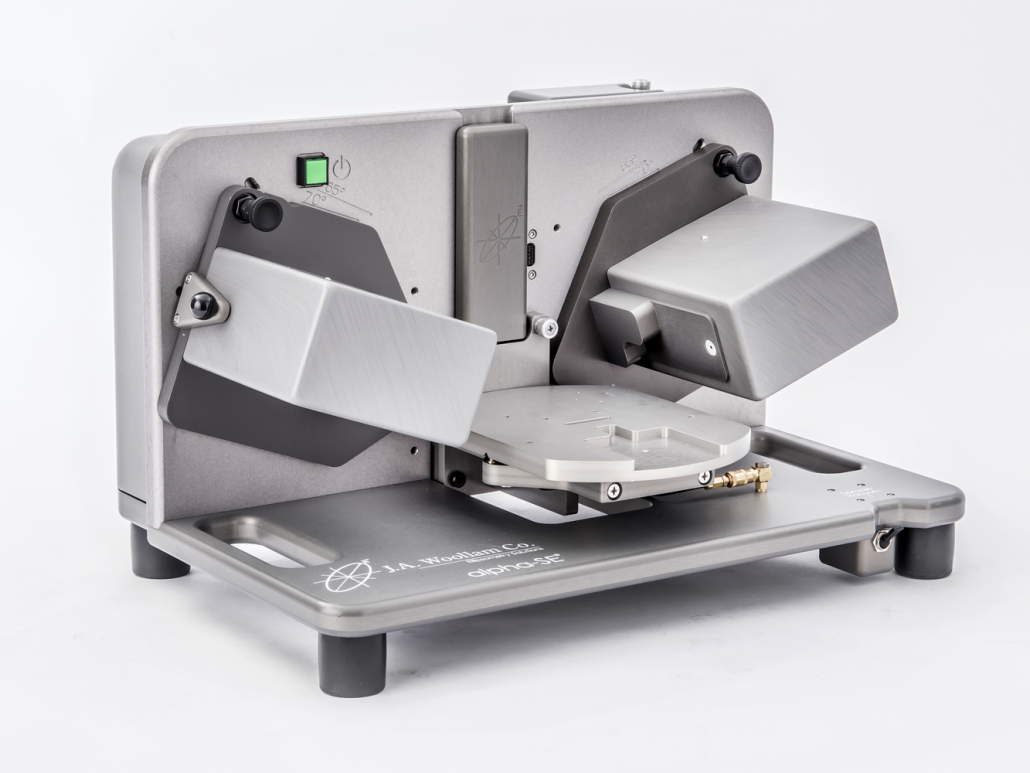

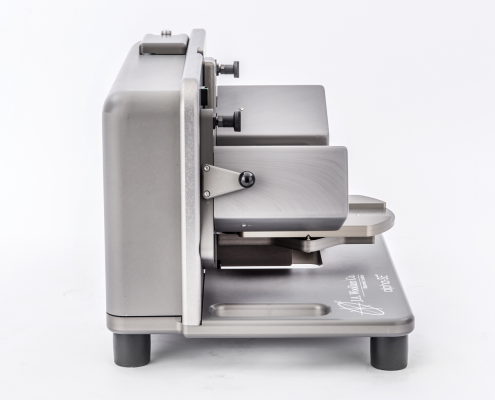

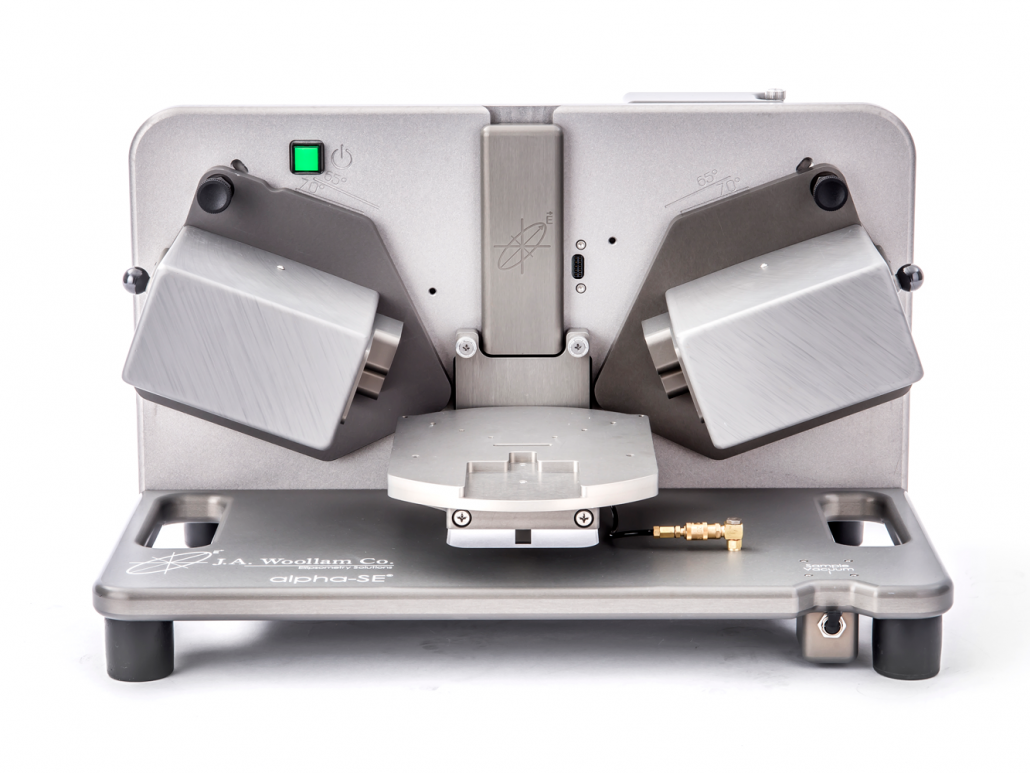

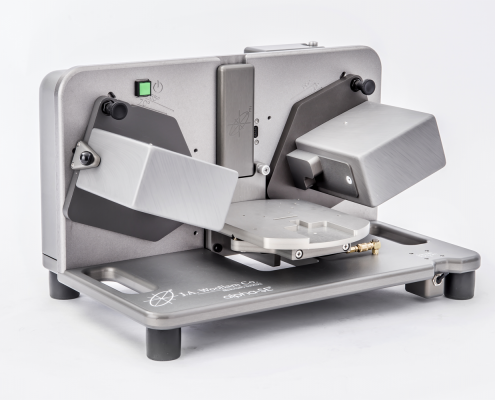

alpha-SE Ellipsometer

For routine measurements of thin film thickness and refractive index, this ellipsometer allows you to mount a sample, choose the model that matches your film, and press “measure”. You have results within seconds.


Why an alpha-SE?


Push-button operation is complemented by advanced software that takes care of the work for you.


Proven spectroscopic ellipsometer technology gives you both thickness and index with much higher certainty than other techniques.


Works with your materials – dielectrics, semiconductors, organics, and more.


Spectroscopic ellipsometry for simple sample systems.


Hundreds of wavelengths simultaneously collected in seconds for immediate results.



With fast measurement speed and push-button operation, the alpha-SE® is ideal for qualifying thin films. Single-layer dielectrics on silicon or glass substrates can be measured in seconds. Log results for easy-to-use comparisons in both graphical and tabular formats.

A quick comparison of nitride thin films shows variation in the thickness and refractive index with process condition.

For organic layers on golf, the phase parameter (Delta) shifts downward with increasing thickness.


Phase information of a spectroscopic ellipsometry measurement is highly sensitive to very thin films (<10nm).  Self-assembled monolayers can be assessed and quickly compared using the alpha-SE.

For organic layers on gold, the phase parameter (Delta) shifts downward with increasing thickness.

For organic layers on gold, the phase parameter (Delta) shifts downward with increasing thickness.


Advanced models provide quick and efficient fits for a wide variety of materials you may encounter.


• a-Si
• poly-Si
• Diamond-like carbon
• Organic materials
• Organic LED films
• SiC


• Lorentz
• Gaussian
• Harmonic
• Tauc-Lorentz
• Cody-Lorentz


Patented technology allows accurate measurements on any substrate: metal, semiconductor, or glass. On transparent substrates, the alpha-SE® measures depolarization to correct for light returning from the backside of the substrate. This unwanted light can confuse other ellipsometers, but the alpha-SE® ensures accurate optical constants.

Try Alternate Models Results

The high sensitivity of alpha-SE technology provides microstructural details that you can not get from Reflectance measurements. Here a thin film of Titanium Dioxide is measured with the alpha-SE and its index is found to vary between the substrate and surface. A graded model best describes this sample.

Ellipsometer Configuration RCE
Wavelength Range 380-900 nm
Number of Wavelengths 180
Detector CCD
Angles of Incidence 65°, 70°, 75° or 90° (straight-through)
Data Acquisition Rate
(Complete Spectrum)
3 sec.   – Fast mode
10 sec. – Standard mode
30 sec. – High-precision mode
Max substrate thickness 16mm

Facility Requirements

Power 100/240 VAC, 47-63Hz, <1 Amp


Width 19″
Depth 30″
Height 36″

alpha-se-side-dimensions alpha-se-front-dimensions


500µL Liquid Cell

 500µL liquid capacity

70° angle of incidence

Designed for glass slides & 1” or 2” wafers


Tilt stage designed to hold Q-Sense QCM-D Quartz Crystal Microbalance (E-Series with E1 Chamber)

Transmission Mount

Holds sample vertically in the path of light beam to allow normal incidence transmission measurements.

Does the alpha-SE come with full-feature software package?

Yes, every alpha-SE comes with CompleteEASE which is the exact same software being used on M-2000 and RC2 ellipsometers.  All features of CompleteEASE are available for use.

Do I need to provide a PC?

Depends, on your quote you will see an option to add a computer.  It’s perfectly fine if you provide your own but make sure it meets the minimum specifications.

Can I upgrade the spectral range later?

The alpha-SE is only available with a spectral range of 380-900 nm.  If you already own an alpha-SE contact your J.A. Woollam representative to evaluate trade-in options.

Is a Heat Cell available at this time?

Currently, our Heat Cells are not compatible with the alpha-SE.
